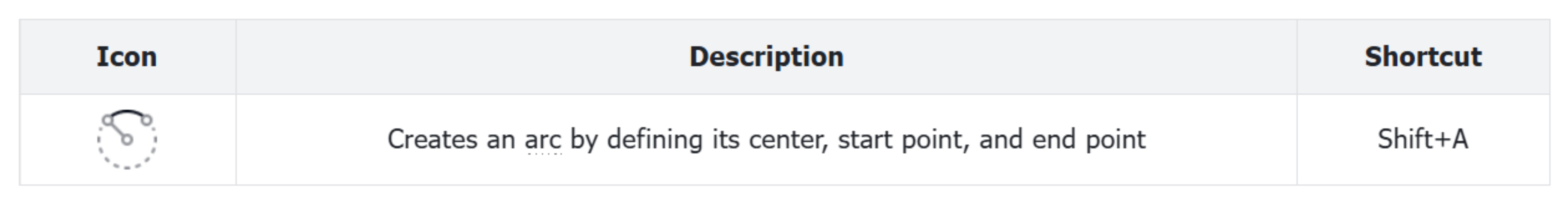

Centerpoint Arc

Steps

1. Hover over the "Arc" icon in the toolbar.

2. Click the "Centerpoint Arc" to enter Centerpoint Arc mode.

3. Create a Centerpoint arc:

   1. Move the cursor and left-click to define the arc center.

   2. Move the cursor and left-click again to define the arc start point.

   3. Left-click to define the arc end point.

   4. (Optional) Enter a radius value and press Enter.

4. Right-click or press Esc to exit.

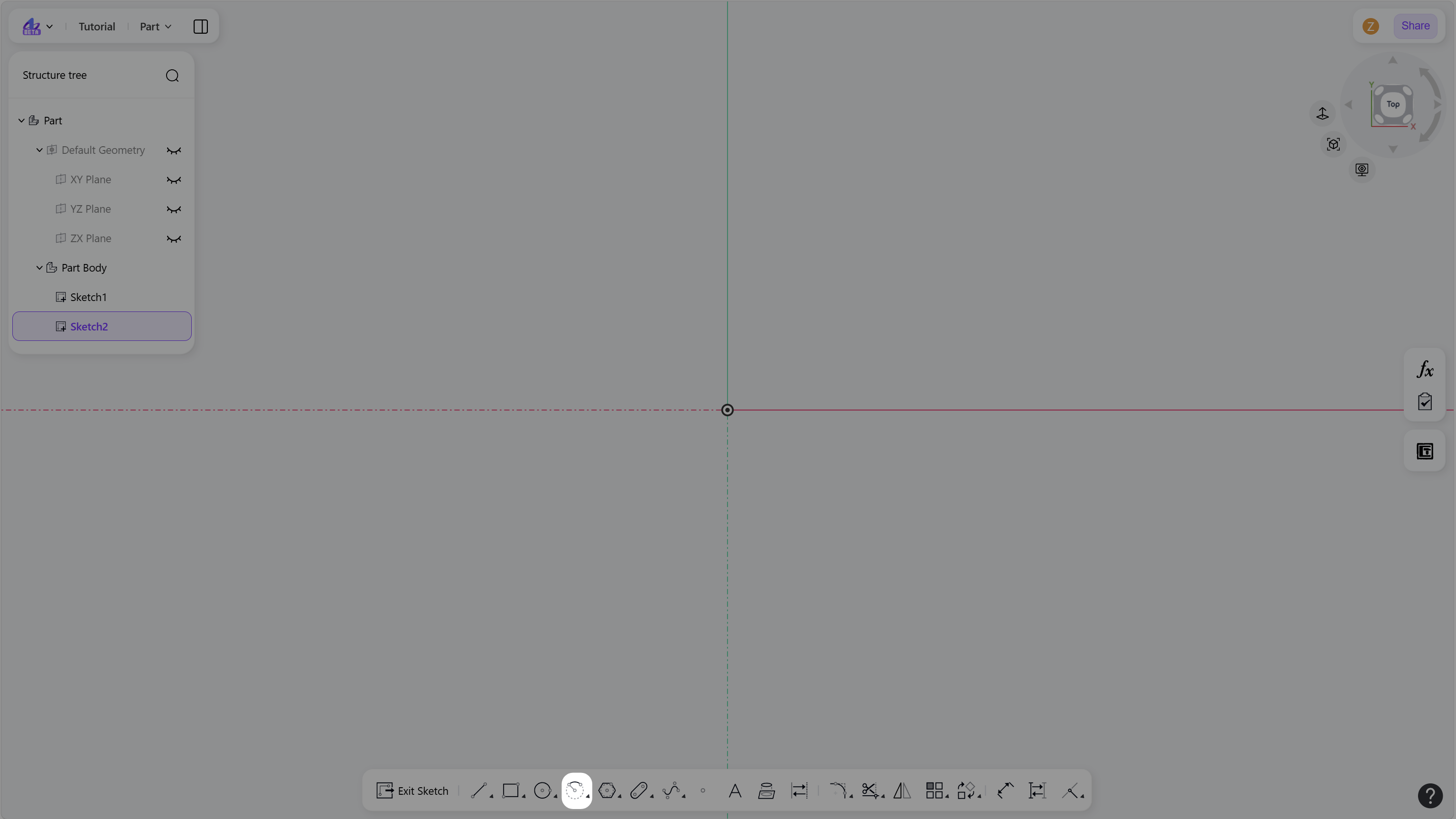

Step 1 - Hover over the "Arc" icon in the toolbar:

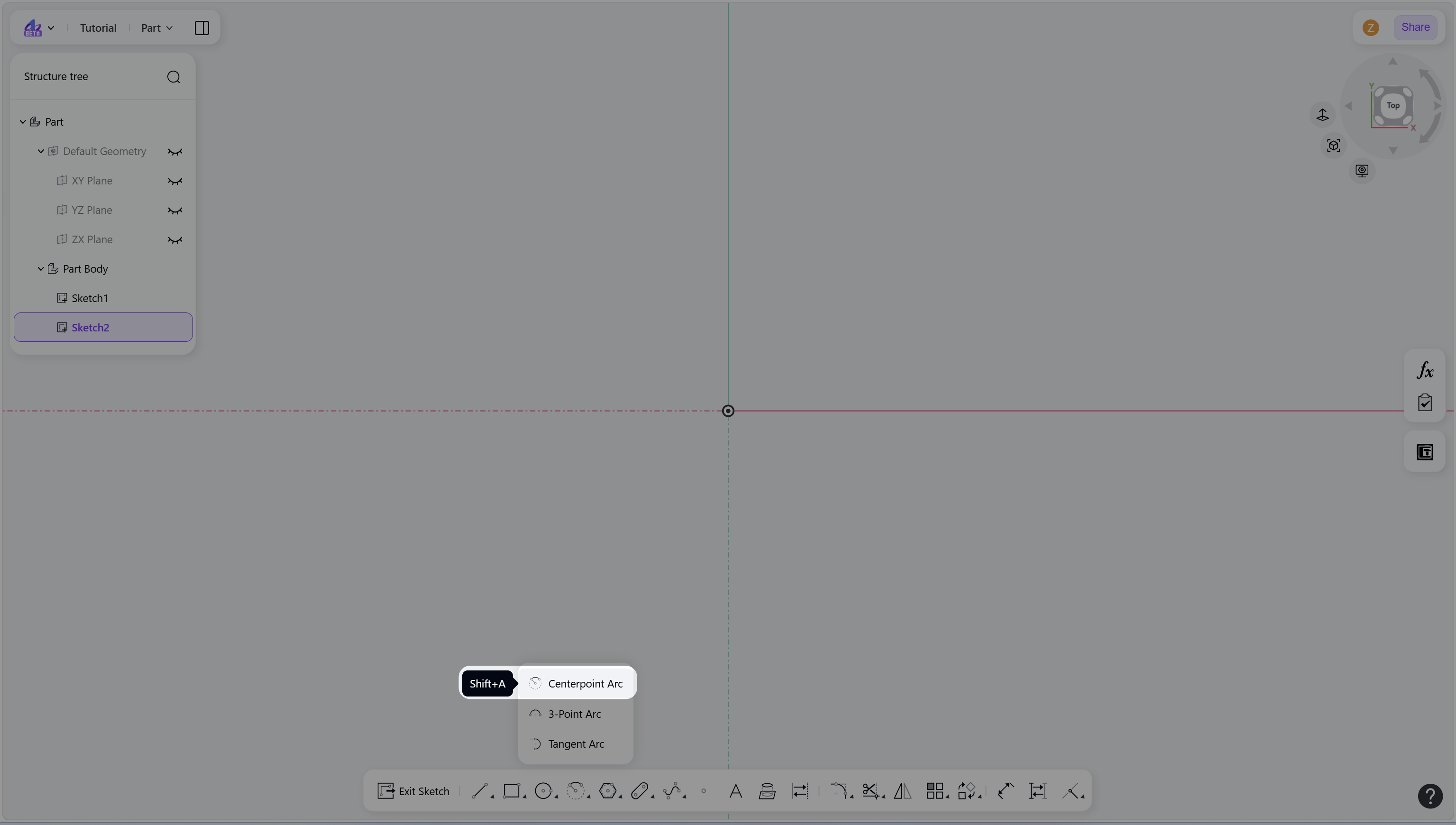

Step 2 - Click the "Centerpoint Arc" to enter Centerpoint Arc mode:

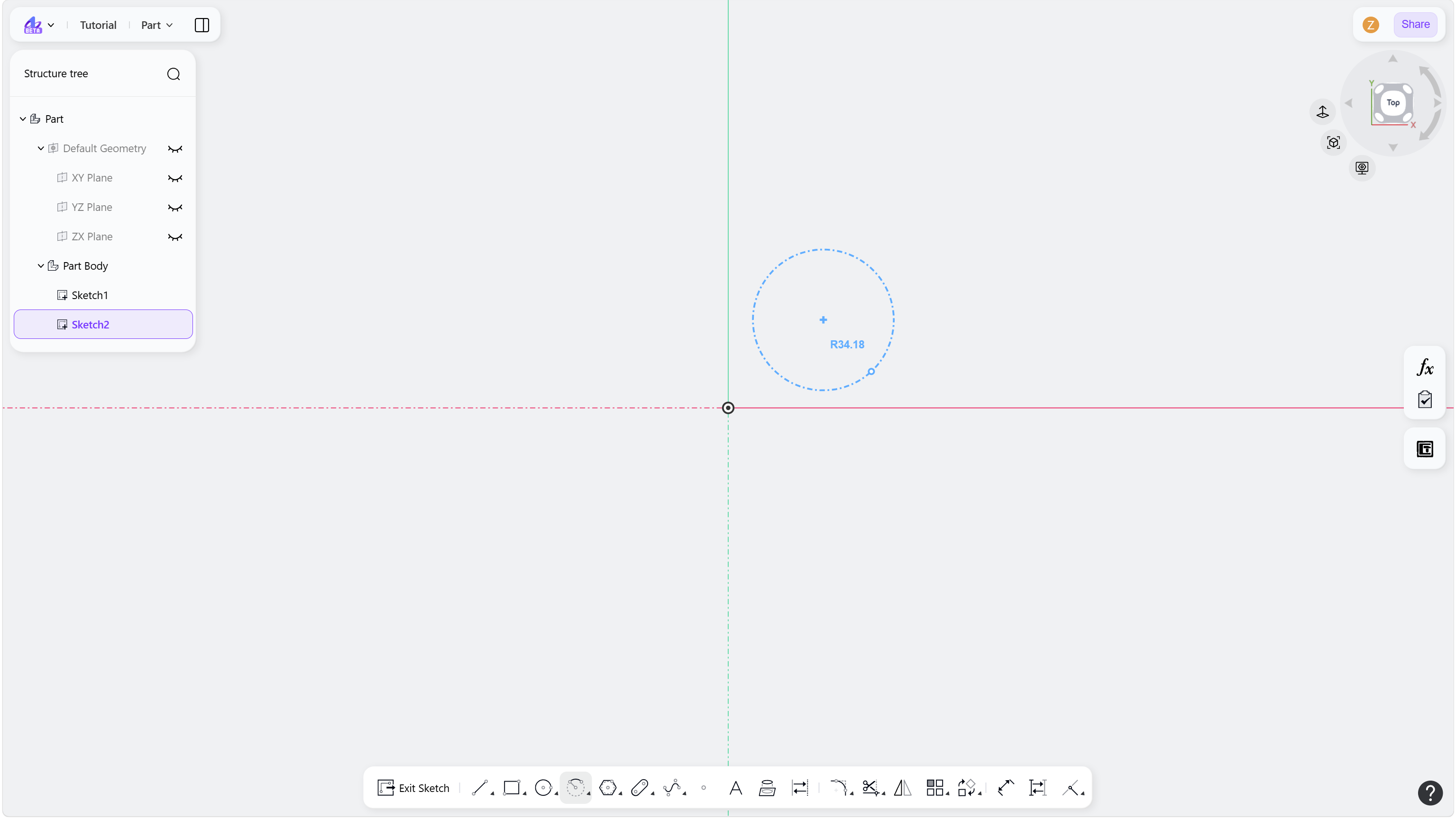

Step 3 - Left-click to define the arc center:

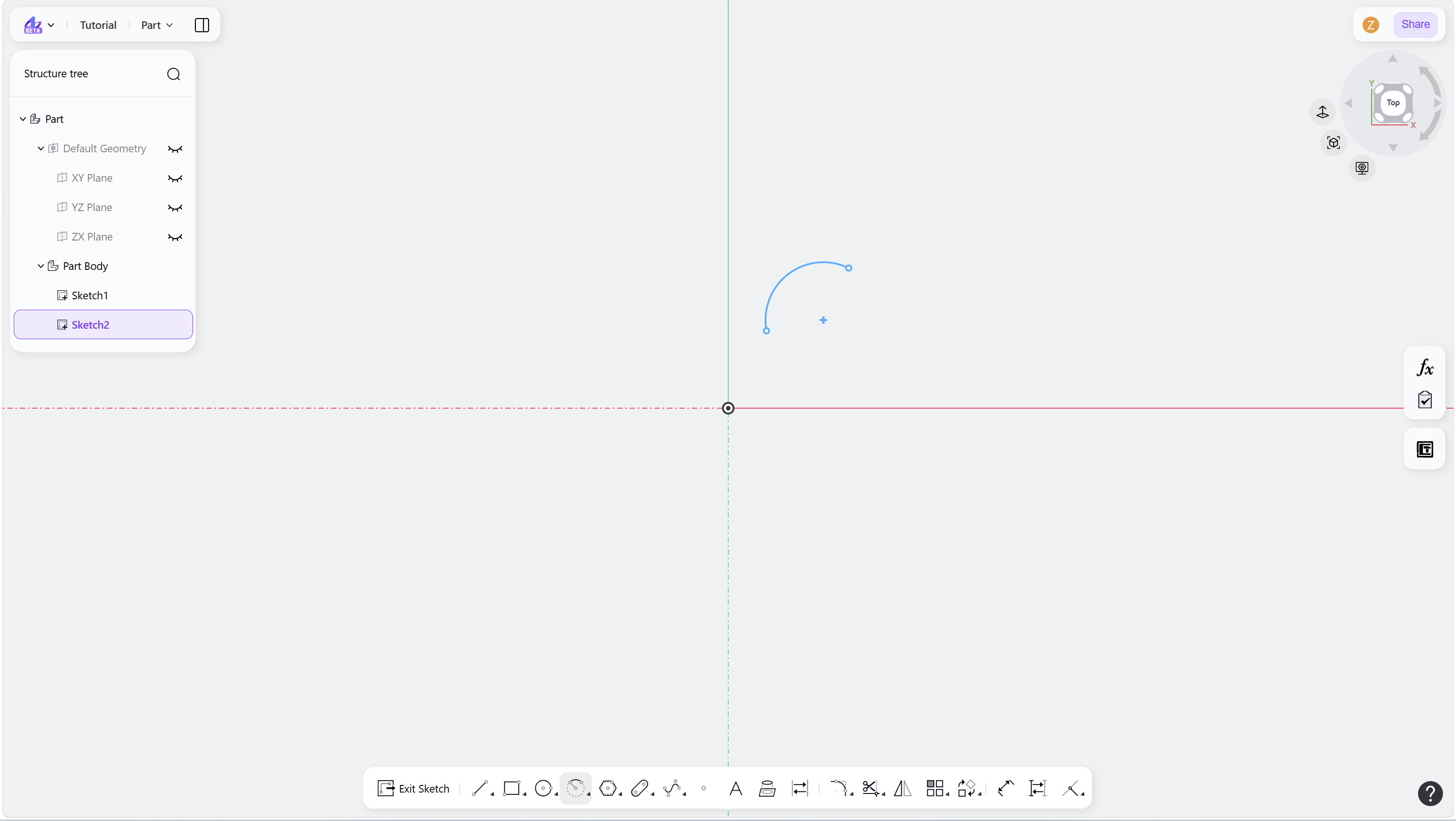

Step 4 - Left-click to define the start and end points of the arc in sequence:

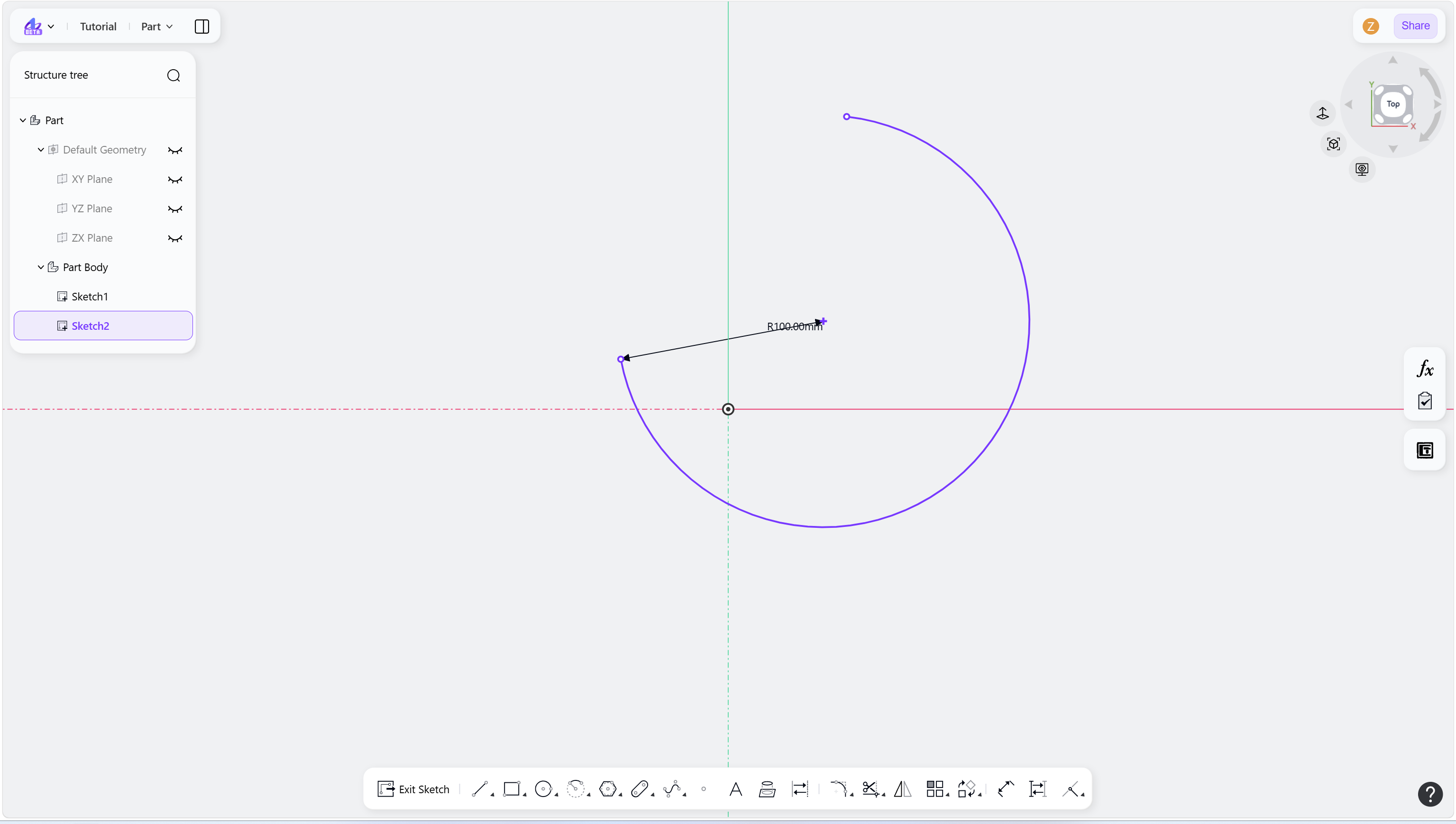

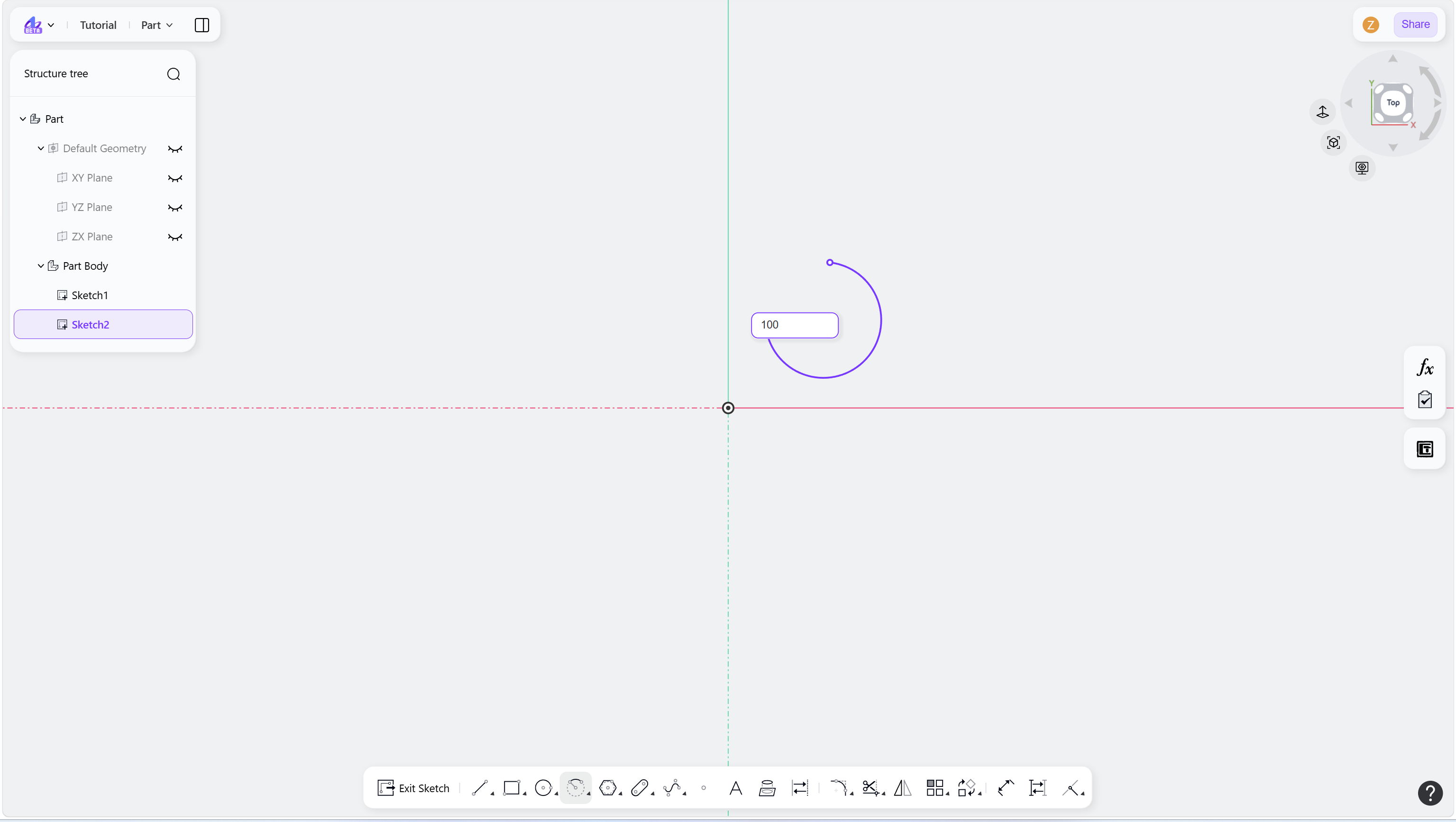

Step 5 - Enter a radius value to add constraint to the Centerpoint Arc:
