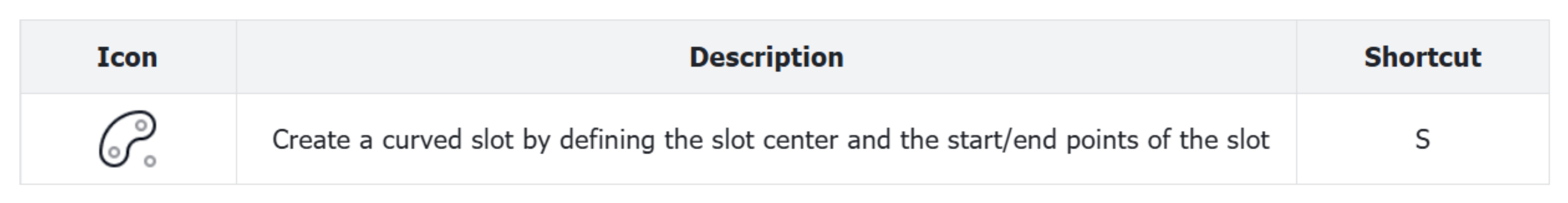

Centerpoint Arc Slot

Steps

1. Hover over the "Slot" icon in the toolbar.

2. Click the "Centerpoint Arc Slot" to enter Centerpoint Arc Slot mode.

3. Create a Centerpoint Arc Slot:

   1. Left-click in the drawing area to define the center of the arc slot.

   2. Move the cursor and left-click to define the start point of the arc slot centerline.

   3. Move the cursor and left-click to define the end point of the arc slot centerline.

   4. Move the cursor and left-click to define the slot width.

   5. (Optional) Enter a value and press Enter to apply dimensional constraints.

4. Right-click or press Esc to exit.

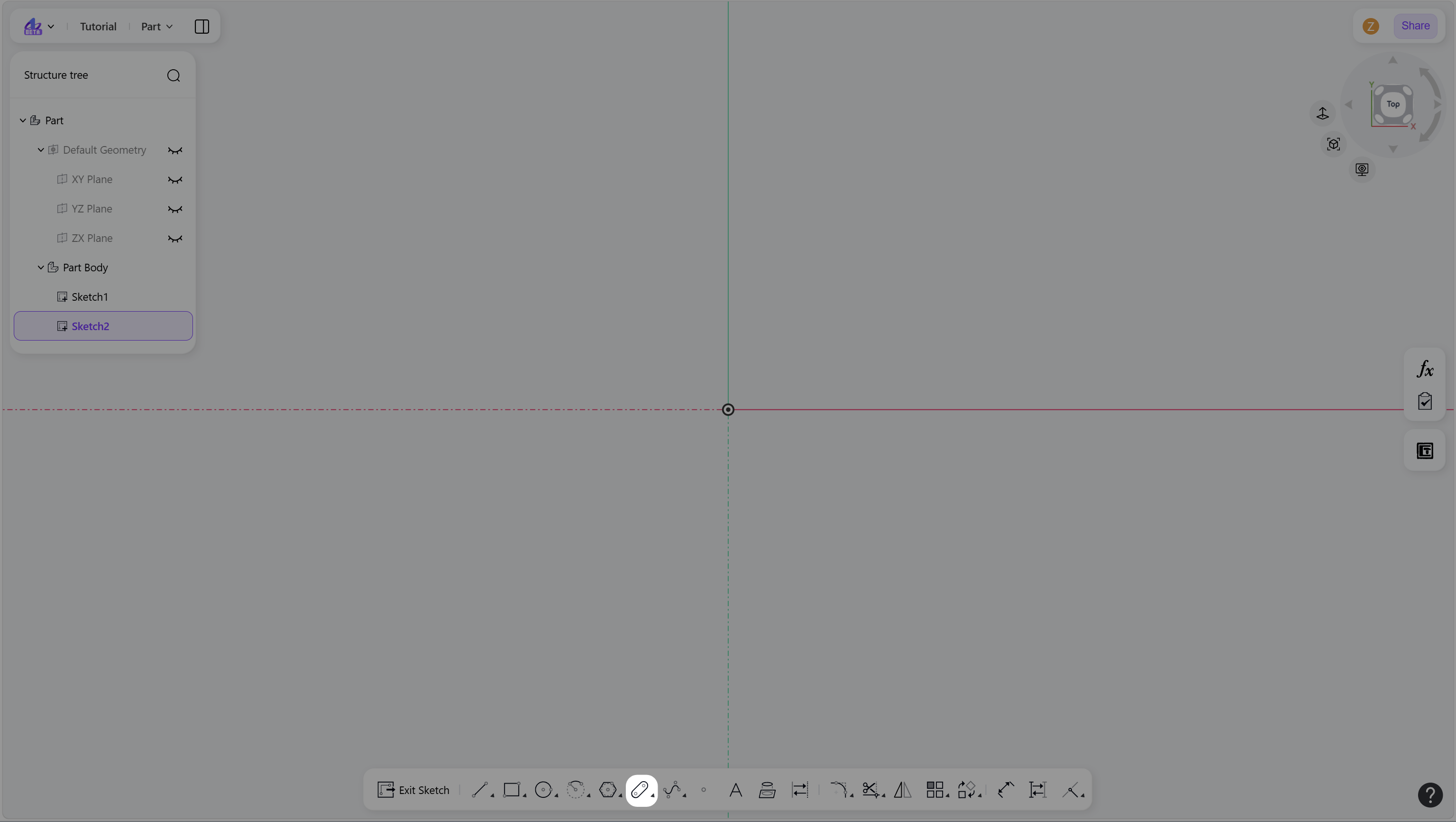

Step 1 - Hover over the "Slot" icon in the toolbar:

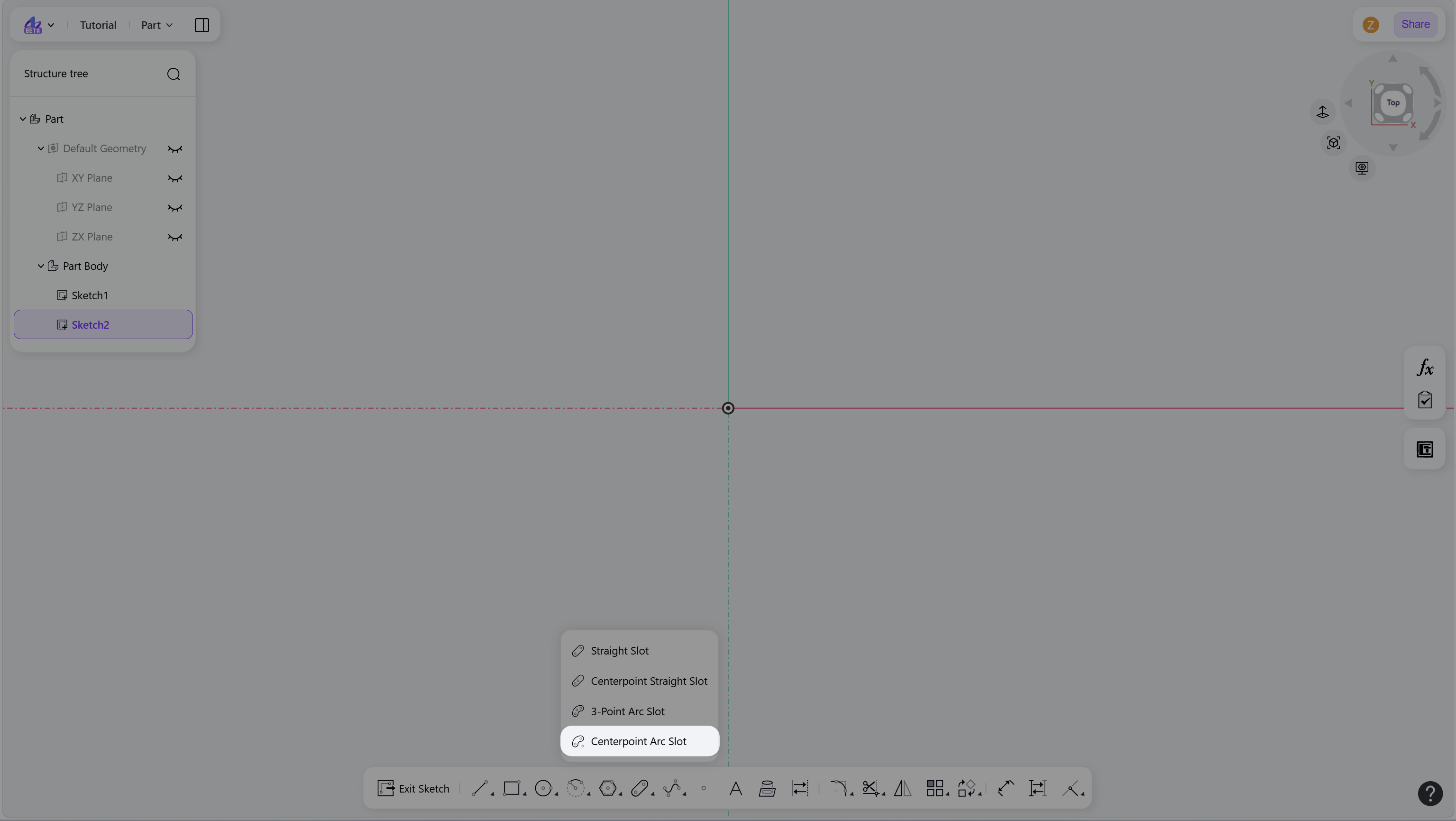

Step 2 - Click the "Centerpoint Arc Slot" to enter Centerpoint Arc Slot mode:

Step 3 - Left-click to define the center of the arc slot:

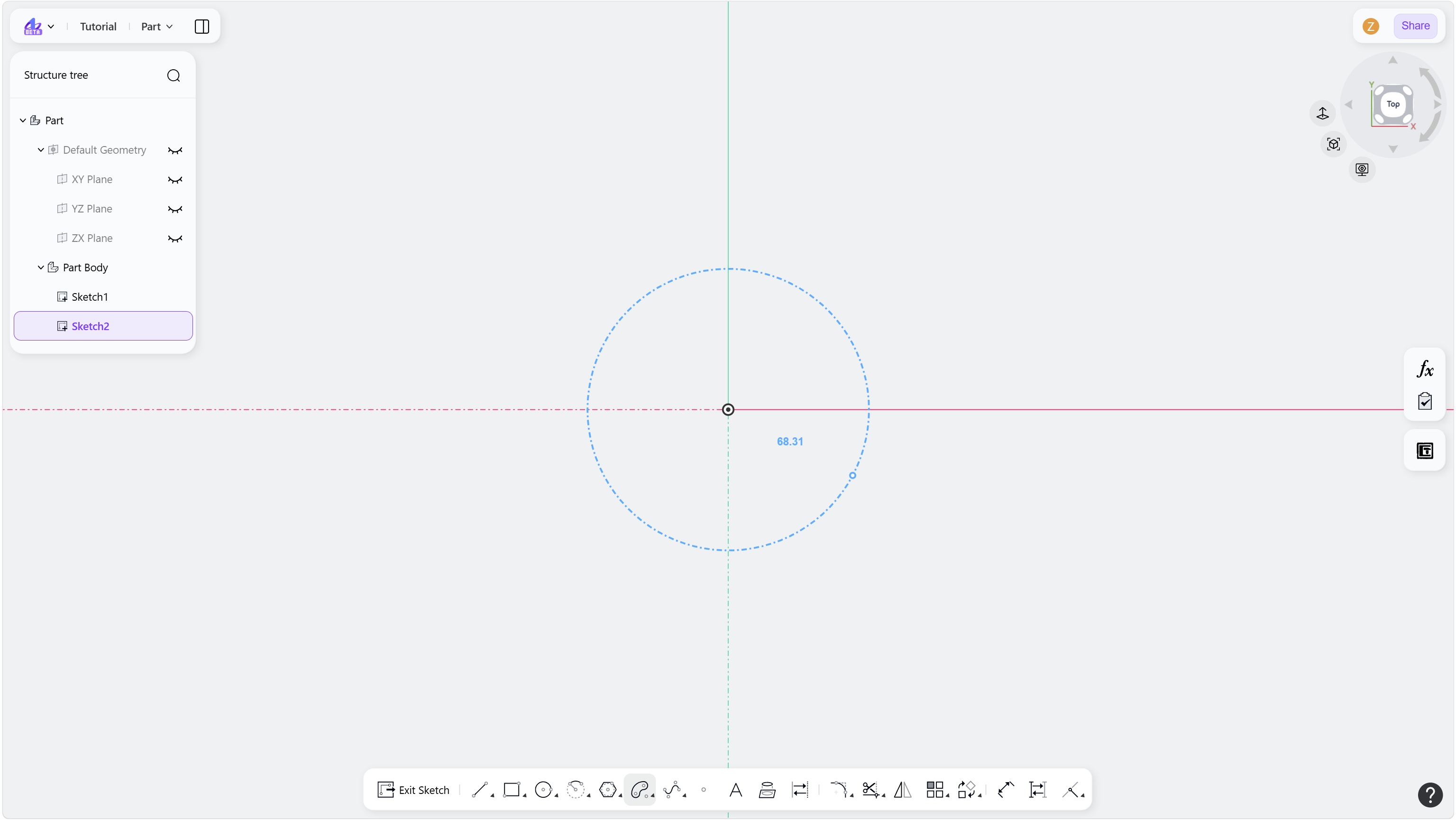

Step 4 - Left-click to define the start point of the arc slot centerline:

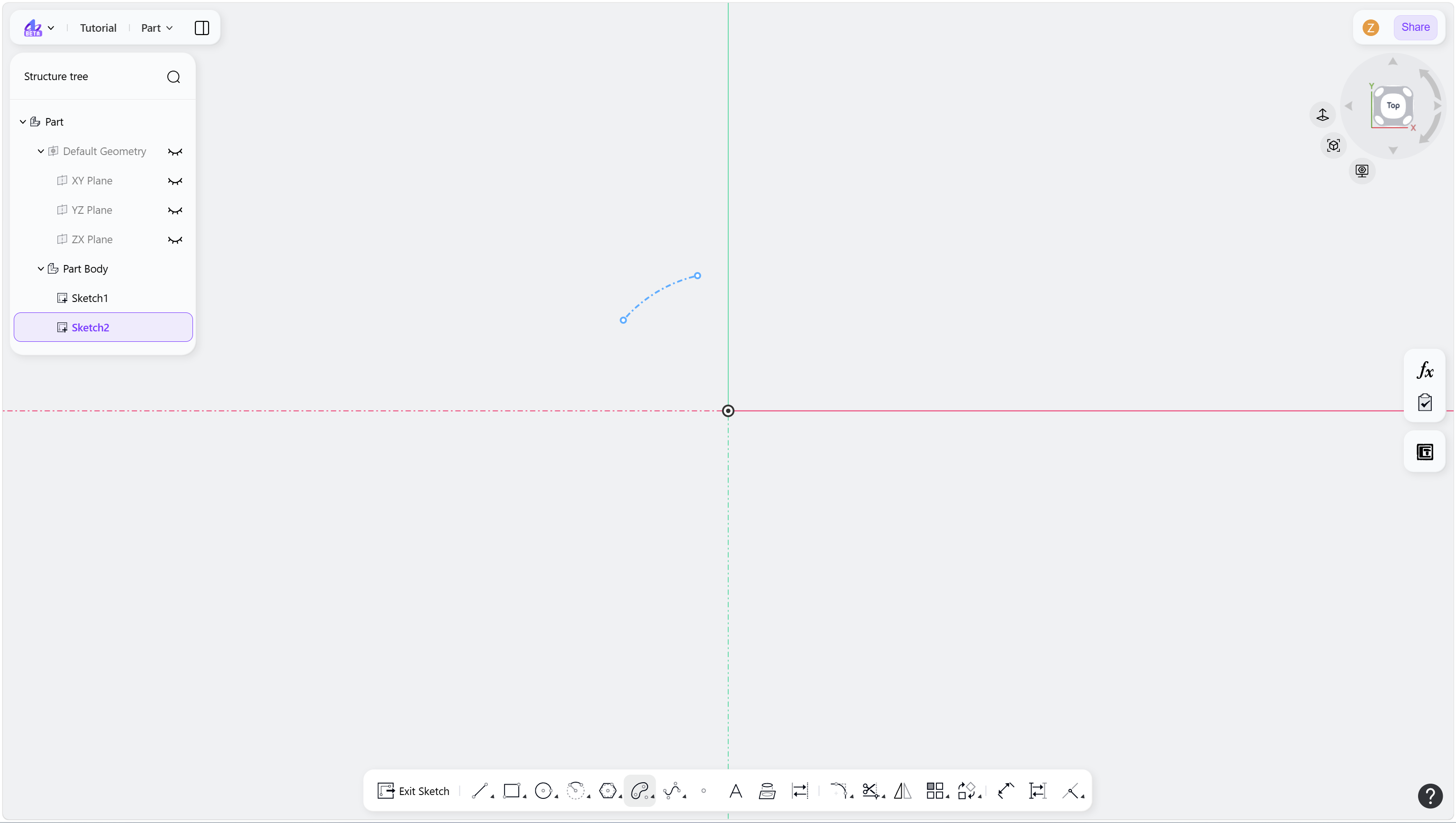

Step 5 - Left-click to define the end point of the arc slot centerline:

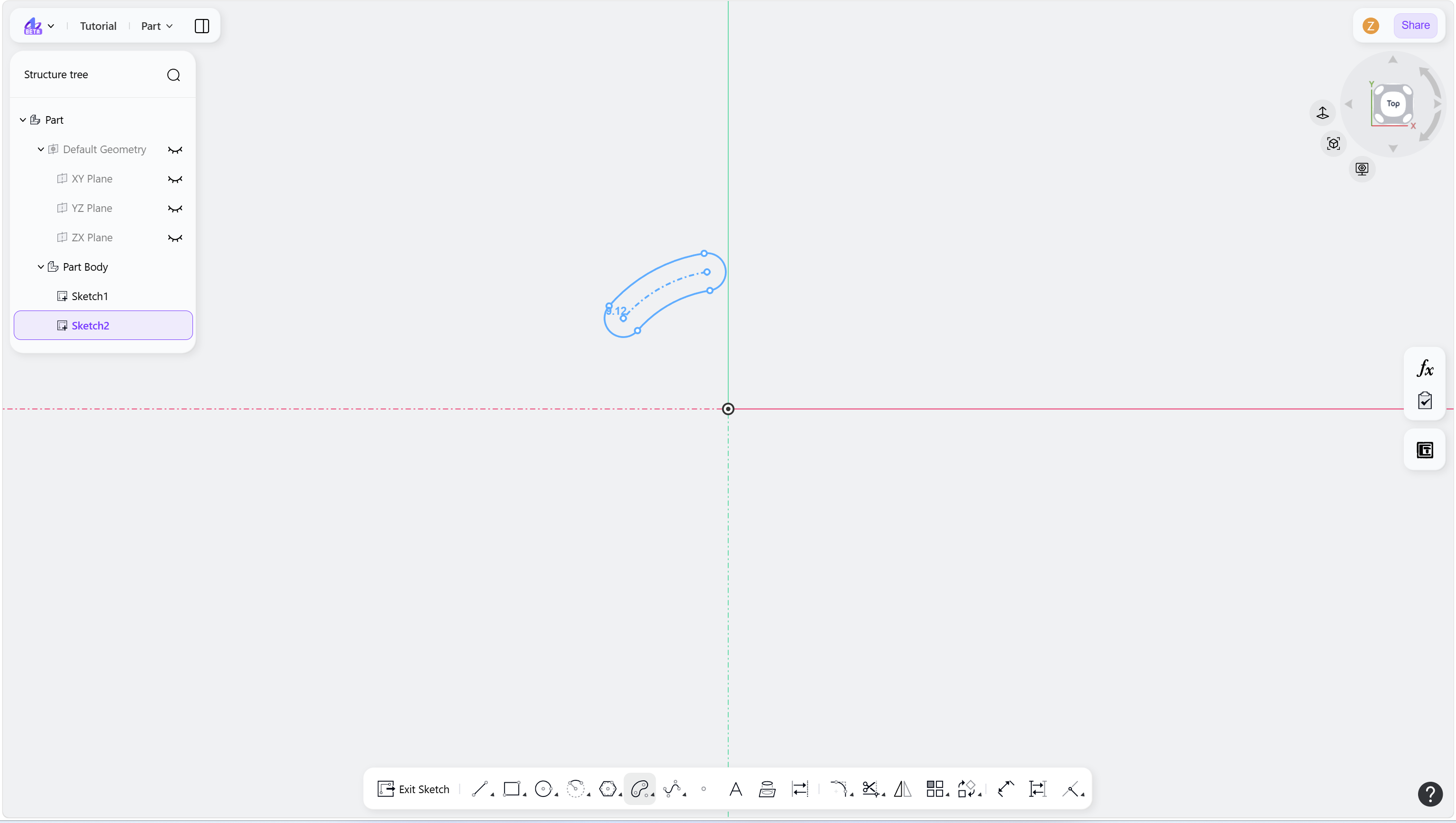

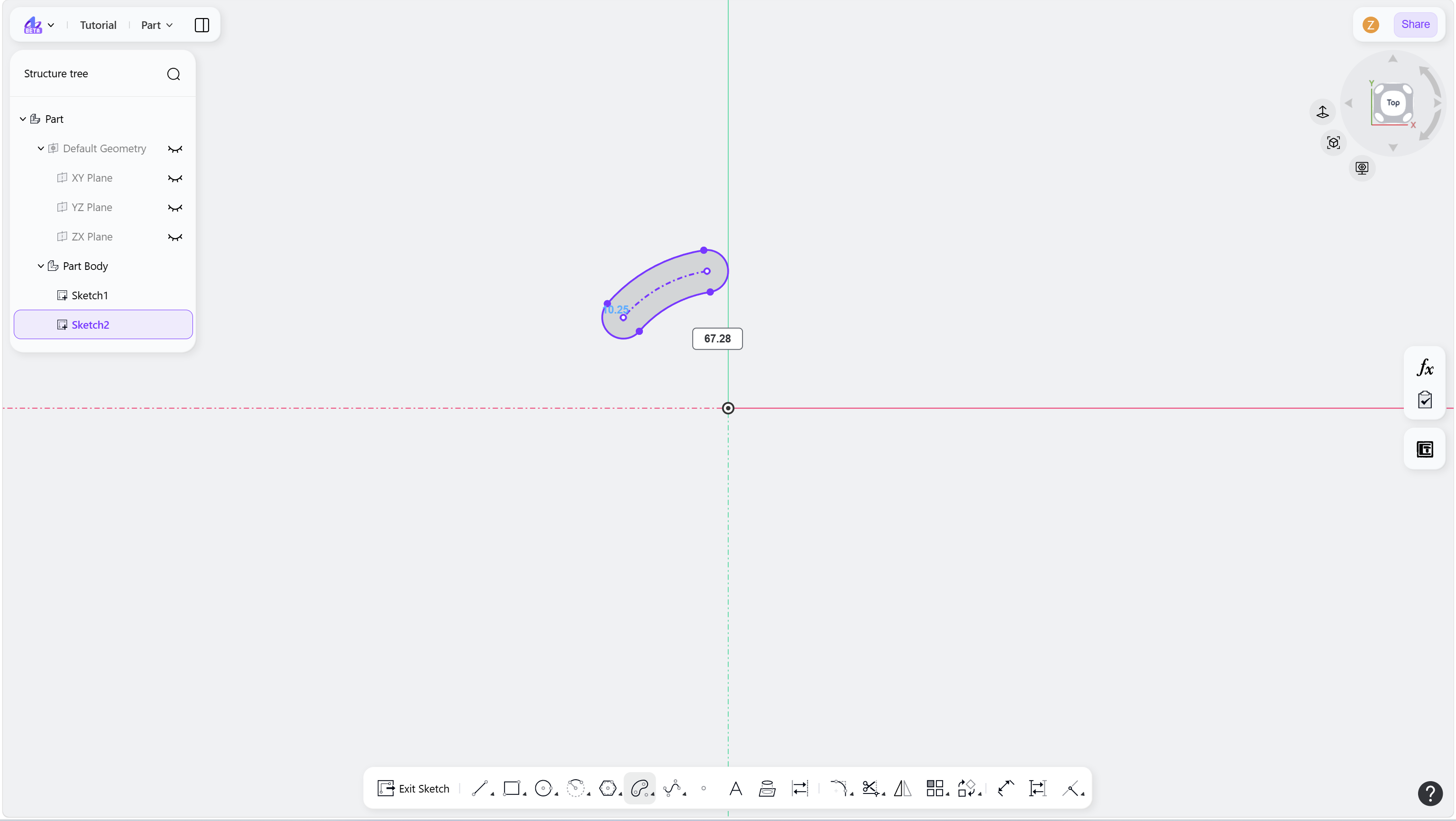

Step 6 - Left-click to define the slot width:
